• Country
• Italy

• Manufacturer / Brand
• Unda Radio; Como, Dobbiaco

• Year
• 1955/1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 118578

• Number of Tubes
• 6

• Valves / Tubes
• 6BE6 6BA6 6AT6 6AQ5 DM70 6X4

• Main principle
• Superheterodyne (common); ZF/IF 467 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

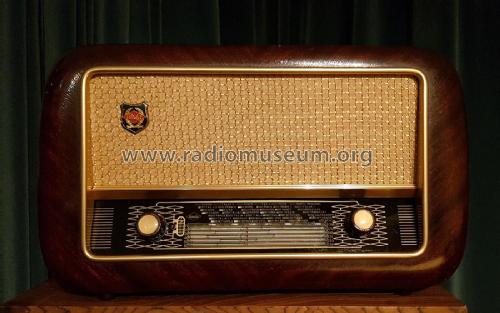

• Model: R66/7 - Unda Radio; Como, Dobbiaco

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 460 x 280 x 180 mm / 18.1 x 11 x 7.1 inch

• Notes
• 5 gamme d'onde corte. Mobile in legno impiallacciato con cornice in metallo.

• Net weight (2.2 lb = 1 kg)
• 4.4 kg / 9 lb 11.1 oz (9.692 lb)

• Source of data

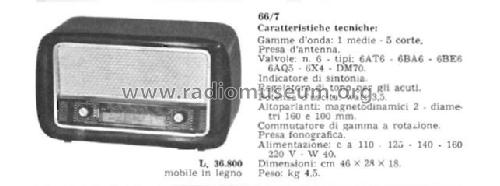

• Guida Pratica Antique Radio (1) 1999

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
