R76/1-MF
Unda Radio; Como, Dobbiaco
- Country
- Italy
- Manufacturer / Brand
- Unda Radio; Como, Dobbiaco
- Year
- 1955/1956
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 118585

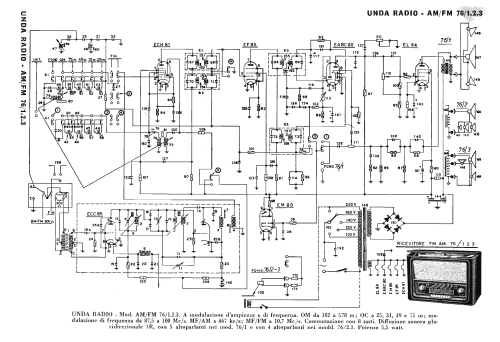

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Number of Transistors
- Semiconductors
- Selenium-Rectifier
- Main principle
- Superheterodyne (common); ZF/IF 467/10700 kHz
- Wave bands
- Broadcast, more than 2 SW bands plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
- Loudspeaker
- 3 Loudspeakers
- Power out
- 5.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: R76/1-MF - Unda Radio; Como, Dobbiaco
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 600 x 390 x 270 mm / 23.6 x 15.4 x 10.6 inch
- Notes
- Gamme d'onda: medie, 4 corte, FM (87,5-100 MHz). 2 altoparlanti Ø 22 cm, uno Ø 10 cm.
- Net weight (2.2 lb = 1 kg)
- 11 kg / 24 lb 3.7 oz (24.229 lb)
- Price in first year of sale
- 65,000.00 ITL
- Source of data
- Guida Pratica Antique Radio (1) 1999
- Mentioned in
- Catalogo ANIE (1956-57)
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
