Junior Amateur TV-200
Unica (Yunika); (where?)
- Country
- Japan
- Manufacturer / Brand
- Unica (Yunika); (where?)
- Year
- 1967 ?
- Category
- Amateur-Receiver (amateur bands, may include broadcast bands)
- Radiomuseum.org ID
- 319017
Peter Zerlett
Peter Zerlett
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1.5 W (undistorted)
- Material
- Metal case
- from Radiomuseum.org
- Model: Junior Amateur TV-200 - Unica Yunika; where?
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 320 x 165 x 180 mm / 12.6 x 6.5 x 7.1 inch
- Notes
-

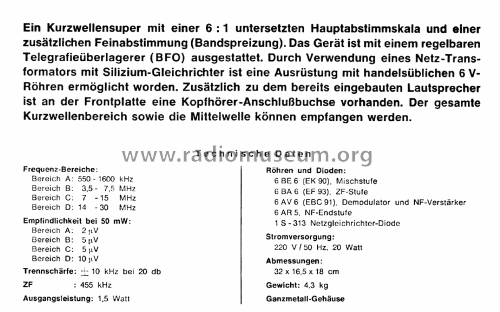

550 kHz to 30 MHz in four ranges, reception gap between 1600 and 3500 kHz, BFO.
Made in Japan.
- Net weight (2.2 lb = 1 kg)
- 4.3 kg / 9 lb 7.5 oz (9.471 lb)
- Author
- Model page created by Egon Strampe. See "Data change" for further contributors.
