Oxford 7003
Unica Radio, Rudolph Schmidt; København
- Country
- Denmark
- Manufacturer / Brand
- Unica Radio, Rudolph Schmidt; København
- Year
- 1956
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 256649

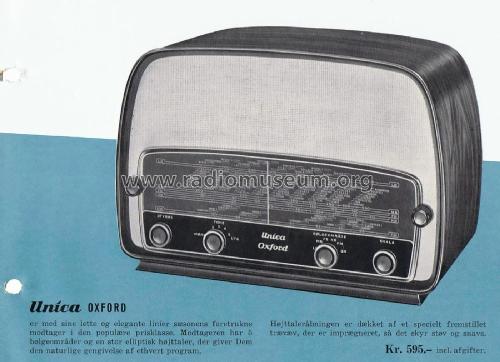

Printmedia
- Number of Tubes
- 4
- Number of Transistors
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
- Power type and voltage
- AC/DC-set / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Oxford 7003 - Unica Radio, Rudolph Schmidt;
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 465 x 315 x 250 mm / 18.3 x 12.4 x 9.8 inch
- Notes
-
Drehschalter zur Auswahl von LB, MB, FB, 2x KB(17 - 50m, sowie 80 -150m für das sog. Fischereiband), FM, Grammophon. Ratio-Detektor mit Germanium-Dioden. Ovaler LS 240x120mm.
- Net weight (2.2 lb = 1 kg)
- 6.8 kg / 14 lb 15.6 oz (14.978 lb)
- Author
- Model page created by Heinz LUCAS. See "Data change" for further contributors.
- Other Models
-
Here you find 21 models, 20 with images and 9 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Unica Radio, Rudolph Schmidt; København
Forum contributions about this model: Unica Radio, Rudolph: Oxford 7003
Threads: 1 | Posts: 1
Hello, you can find technical documentation for this model on the link included.
Link:
triple_w_dot_peel_dot_DK
(can´t found how to insert link inside post)
Ther are lots of UNICA Radio models, and that one is included.
Good Luck
Vicente Moncholi - Sevilla - Spain
Vicente Moncholi-Cebrian, 04.Feb.22
