• Country
• Denmark

• Manufacturer / Brand
• Unica Radio, Rudolph Schmidt; København

• Year
• 1954 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 306448

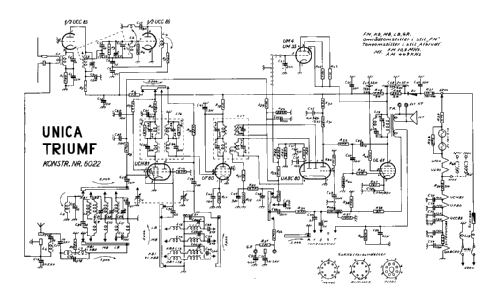

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UCC85 UCH81 UF80 UABC80 UM4 or UM35 UL41

• Number of Transistors

• Semiconductors
• Selengleichrichter

• Main principle
• Superheterodyne (common); ZF/IF 449/10900 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• AC/DC-set / 220V Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

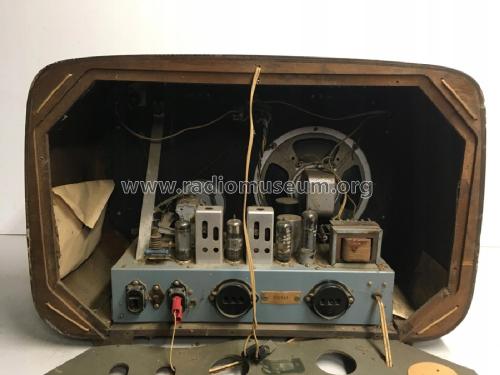

• Model: Triumf 6022 - Unica Radio, Rudolph Schmidt;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 540 x 220 x 360 mm / 21.3 x 8.7 x 14.2 inch

• Mentioned in
• -- Schematic

• Author
• Model page created by Tomasz Szczesniak. See "Data change" for further contributors.
