• Country
• Japan

• Manufacturer / Brand
• Uniden; Tokyo

• Year
• 2010 ??

• Category
• Commercial Transmitter & Receiver (TRX not Amateur)

• Radiomuseum.org ID
• 330057

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Transceiver

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

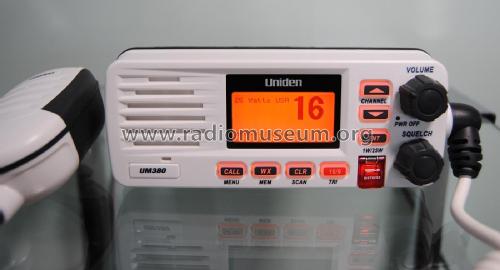

• Model: Uniden Solara Class D DSC Marine Radio UM380 - Uniden; Tokyo

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 162 x 66 x 128 mm / 6.4 x 2.6 x 5 inch

• Notes

• The Uniden Solara UM380 is a powerful yet compact fixed mount marine radio that's ready for on-board installation. It can transmit on US, Canadian and International marine channels at 1 or 25 watts of power and is Class D DSC (Digital Select Calling) capable.
  It features NOAA weather and emergency alerts with S.A.M.E. technology, supports Triple Watch operation, and is JIS4 / CFR46 water resistant against damage from rain or splashing water.

  The UM380 also features a full, easy to read dot matrix LCD display and comes equipped with a rugged microphone with rubber grips.

  TX Freq. Range: 156 to 158 MHz
  RX Freq. Range: 156 to 163 MHz

• Net weight (2.2 lb = 1 kg)
• 1 kg / 2 lb 3.2 oz (2.203 lb)

• Price in first year of sale
• 120.00 CAD

• Mentioned in
• - - Manufacturers Literature (User Manual)

• Author
• Model page created by Serioja Tatu. See "Data change" for further contributors.
