USB Digital Interface PTT
UniDigi, Michalis Vasilakis; Aghios Nikolaos, Crete
- Country
- Greece
- Manufacturer / Brand
- UniDigi, Michalis Vasilakis; Aghios Nikolaos, Crete
- Year
- 2000 ??
- Category
- Amateur Equipment (Other, but not Key)
- Radiomuseum.org ID
- 287511
Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Power type and voltage
- Batteries / addl. power jack / 9 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: USB Digital Interface PTT - UniDigi, Michalis Vasilakis;
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 65 x 26 x 87 mm / 2.6 x 1 x 3.4 inch
- Notes
-

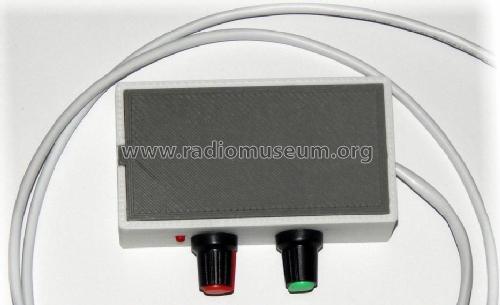

USB Digital Interface with PTT control, suitable for any radio transceiver with 6 pins mini-din Input/Output data port (i.e. YAESU FT-817); built-in potentiometer to adjust transmitting (TX) level and a potentiometer to adjust audio level for proper receiving (RX) level; one internal 6LR61 type 9 VDC alkaline battery.
- Net weight (2.2 lb = 1 kg)
- 0.3 kg / 0 lb 10.6 oz (0.661 lb)
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Emilio Focosi. See "Data change" for further contributors.
