• Country
• Germany

• Manufacturer / Brand
• Union-Ring e.V.; Hamburg

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 119242

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EL84

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

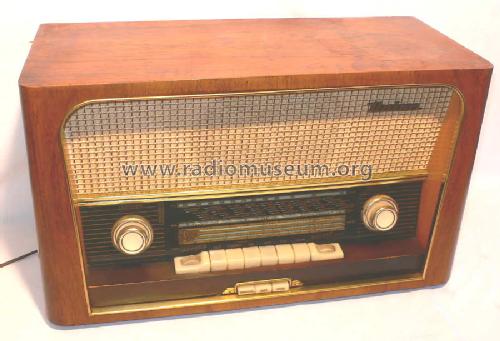

• Model: Union W59/3D [ohne Plattenspieler] - Union-Ring e.V.; Hamburg

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 530 x 325 x 250 mm / 20.9 x 12.8 x 9.8 inch

• Notes

• Herstellung: Kaiser KG für Union-Ring e.V.

  Siehe auch Union W59/3D mit Plattenspieler.

• Net weight (2.2 lb = 1 kg)
• 9.4 kg / 20 lb 11.3 oz (20.705 lb)

• Price in first year of sale
• 210.00 DM

• Mentioned in
• Prospekt/Werbezettel der Fa. Union

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
