Peerless 20 Series

United Reproducers Corp. (Peerless); Rochester, NY and Springfield, OH

Data
Forum
Pictures
Collections

  • Year
  • 1928/1929 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 64580

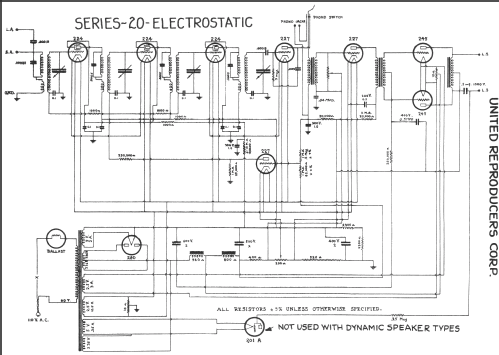

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Main principle
  • TRF (Tuned-Radio-Frequency but use of regeneration unknown)
  • Tuned circuits
  • 4 AM circuit(s)
  • Power type and voltage
  • Alternating Current supply (AC) / 110 Volt
  • Loudspeaker
  • Permanent or electro-dynamic (moving coil), system not known yet.
  • from Radiomuseum.org
  • Model: Peerless 20 Series - United Reproducers Corp.
  • Notes

  • United Reproducers Corp. manufactured five models of it's Series 20 Peerless receivers.  In addition to prices and cabinet styles, the models differed by the type of built-in speaker:

    Peerless 21 was offered with the option of either a standard dynamic speaker or a Kylectron (United Reproducers' brand of electrostatic speaker).

    Peerless 22 was equipped with a standard dynamic speaker.

    Peerless 23 came with a Kylectron speaker.

    Peerless 24 was produced with a 12-inch dynamic speaker.

    Peerless 25 was a radio-phonograph combination which had a Kylectron speaker.

    Production began in late 1928 and, although the company went into receivership in late 1929, a major Kylectron advertising campaign continued until May 1930.  United Reproducers ceased operation before the end of 1930.

  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
  • Literature/Schematics (1)
  • Radio (magazine) (July 1929 page 64a "Specifications of New Sets Displayed at RMA Show")
