• Country
• United States of America (USA)

• Manufacturer / Brand
• United Motors Service (Delco)

• Year
• 1951

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 64320

• • alternative name: Delco Radio Corp. (Appliance) || Delco-Remy Division, General Motors Corp. || United Motors Service Delco General Motors
  • Brand: Chieftain || Delco

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6SK7 6SA7 6SK7 6SR7 6V6GT 6V6GT 0Z4

• Main principle
• Superhet with RF-stage; ZF/IF 260 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / =6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Material
• Metal case

• from Radiomuseum.org

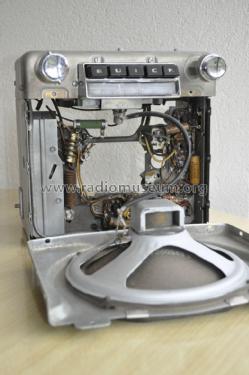

• Model: 980979 Buick - United Motors Service Delco

• Shape
• Chassis only or for «building in»

• Notes
• vibrator for +B;

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 22, covering 1951
