• United States of America (USA)

• Manufacturer / Brand
• United Motors Service (Delco)

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 64479

• • alternative name: Delco Radio Corp. (Appliance) || Delco-Remy Division, General Motors Corp. || United Motors Service Delco General Motors
  • Brand: Chieftain || Delco

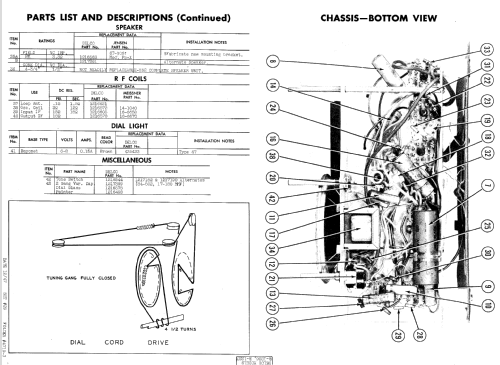

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12SK7 12SA7 12SK7 12SQ7 35L6GT 35Z5GT

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105 - 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Delco R-1236 - United Motors Service Delco

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 12 x 7.75 x 7.25 inch / 305 x 197 x 184 mm

• Notes
• Color= Ivory finish. Tuning 500 to 1700 kc.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 20 covering 1950

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 12-47, Set 29, Folder 4719-7)

• Literature/Schematics (2)
• Radio Retailing (Radio & Television R.) (July 1946 page 12, 42. September 1946 page 22.)
