Delco R-1237
United Motors Service (Delco)
- Country
- United States of America (USA)
- Manufacturer / Brand
- United Motors Service (Delco)
- Year
- 1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 75692
-
- alternative name: Delco Radio Corp. (Appliance) || Delco-Remy Division, General Motors Corp. || United Motors Service Delco General Motors
- Brand: Chieftain || Delco
Beitman

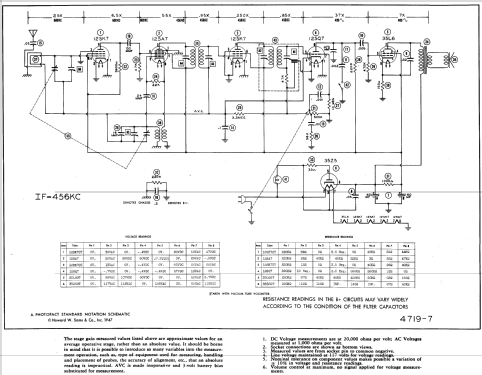

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 105 - 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.75 inch = 12.1 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Delco R-1237 - United Motors Service Delco
- Shape
- Tablemodel, with any shape - general.
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 8, 1948
- Mentioned in
- Info Dr. H. Börner without schematic
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 12-47, Set 29, Folder 4719-7)
- Author
- Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
