• Country
• United States of America (USA)

• Manufacturer / Brand
• United American Bosch (Magneto Corporation); Springfield (MA)

• Year
• 1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 64044

• • alternative name: American Bosch Magneto
  • Brand: Essex

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6F7 6D6 75 42 80

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Tropical/Marine/Police Band(s) = 150-200m.

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

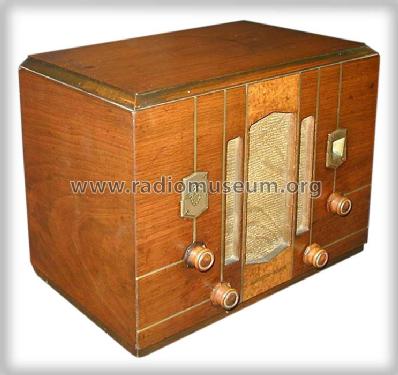

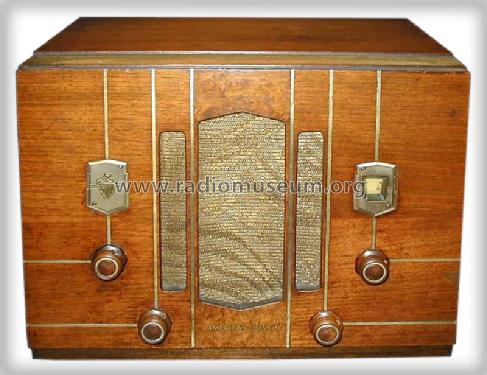

• Model: 420 - United American Bosch Magneto

• Shape
• Tablemodel, with any shape - general.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 5 = ca. 1934 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Riders 5-35 ; 6-11, 12

• Literature/Schematics (2)
• Machine Age to Jet Age II

• Other Models

• Here you find 414 models, 165 with images and 272 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
