• Country
• United States of America (USA)

• Manufacturer / Brand
• United American Bosch (Magneto Corporation); Springfield (MA)

• Year
• 1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 64048

• • alternative name: American Bosch Magneto
  • Brand: Essex

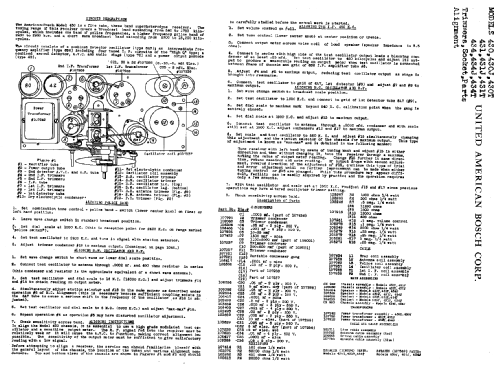

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 6D6 75 42 80

• Main principle
• Superheterodyne (common); ZF/IF 450 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 430T - United American Bosch Magneto

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 6 = 1935 and before

• Literature/Schematics (1)
• Riders 6-13, 14

• Literature/Schematics (2)
• Machine Age to Jet Age II (Cathedral & Tombstone Radios; Stein, 2008)

• Other Models

• Here you find 414 models, 165 with images and 272 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
