• Country
• United States of America (USA)

• Manufacturer / Brand
• United American Bosch (Magneto Corporation); Springfield (MA)

• Year
• 1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 189064

• • alternative name: American Bosch Magneto
  • Brand: Essex

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes

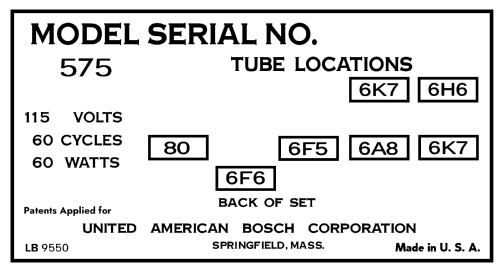

• 6K7 6A8 6K7 6H6 6F5 6F6 80

• Main principle
• Superhet with RF-stage; ZF/IF 465 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 2.3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 575 console - United American Bosch Magneto

• Shape
• Console with any shape - in general

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
