• Country
• United States of America (USA)

• Manufacturer / Brand
• United Factories Company, The; Cleveland

• Year
• 1925 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 210770

• • Brand: Unito

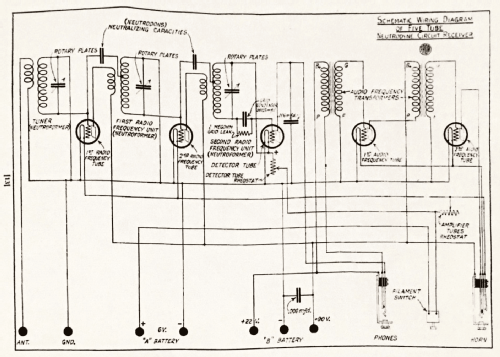

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UX201A UX201A UX201A UX201A UX201A

• Main principle
• TRF without regeneration

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

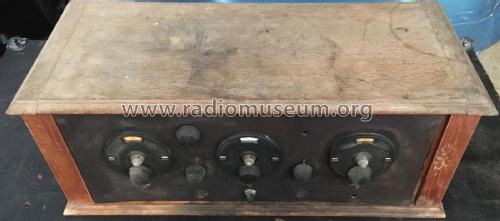

• Model: Unito 5 - United Factories Company, The;

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Notes

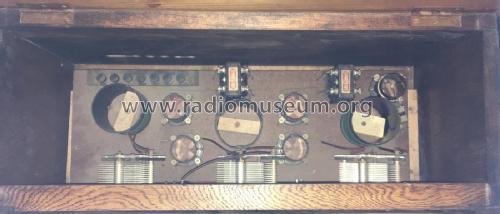

• The UNITO 5 is a five valve TRF (Tuned Radio Frequency) receiver covering the broadcast band.

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.

• Other Models

• Here you find 1 models, 1 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
