Tuner Type C

United Wireless Telegraph Co.; New York City, New York

Data
Forum
Pictures
Collections

  • Year
  • 1907/1908
  • Category
  • Detector-Radio (Crystal or diode, without tubes/transistors)
  • Radiomuseum.org ID
  • 323593

 Technical Specifications

  • Main principle
  • Crystal or Solid State Detector
  • Wave bands
  • Broadcast and LongWave in ONE range.
  • Power type and voltage
  • Dry Batteries / 4.5 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Tuner Type C - United Wireless Telegraph Co.;
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Dimensions (WHD)
  • 12.5 x 7 x 12.125 inch / 318 x 178 x 308 mm
  • Notes

  • United Wireless Telegraph Type C tuner, went into production in 1907. The Type D Tuner based on this unit was put into production in 1908 and became the United Wireless standard receiver for both marine and land stations well into World War I. .

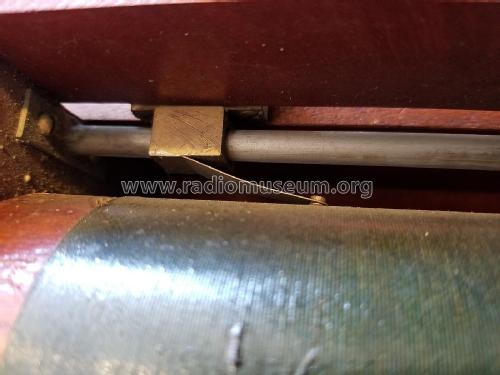

    This receiver has one two-slide coil and one single-slide tuning coil in a mahogany box. A carborundum detector with its potentiometer, and a shunt switch for shorting the detector during transmission, were mounted on top of the cabinet. The batteries were inside the cabinet.

    Tuning range was 200 to 2,000 meters.

  • Mentioned in
  • -- Collector info (Sammler) (Wireless Communication in the United States by Thorn Mayes)
  • Author
  • Model page created by Alan Larsen. See "Data change" for further contributors.
