• Country
• Poland

• Manufacturer / Brand
• Unitra DIORA - Radiowerk Dzierzoniow,

• Year
• 1972

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 234696

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 28

• Semiconductors
• BC109 BC109 BC109 BC109 BC109 BC109 BC109 BC109 BC107 BC107 BD137 2N3055 BC109 BC109 BC107 BC107 BD135 BD136 2N3055 2N3055 BC109 BC109 BC107 BC107 BD135 BD136 2N3055 2N3055

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 40 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org

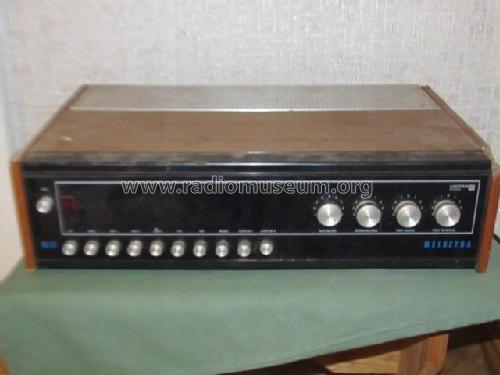

• Model: Meluzyna WST-101 - Unitra DIORA - Radiowerk

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 430 x 120 x 270 mm / 16.9 x 4.7 x 10.6 inch

• Notes

• Meluzyna WST-101 ist ein Verstärker mit 2x 20 Watt Ausgangsleistung an 4 Ohm, passend zum Tuner Meluzyna TST-101.

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang MICHAEL. See "Data change" for further contributors.
