- Country
- Poland
- Manufacturer / Brand
- Unitra ELTRA; Zaklady Radiowe; Bydgoszcz
- Year
- 1982 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 338243
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage

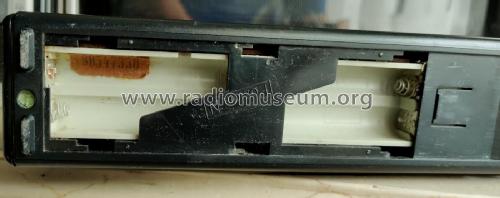

- Line / Batteries (any type) / 220 / AA: 6 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

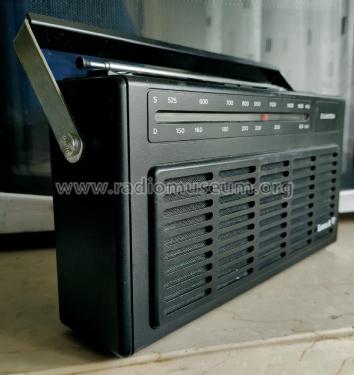

- Model: Lena 2 - Unitra ELTRA; Zaklady Radiowe;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 240 x 130 x 55 mm / 9.4 x 5.1 x 2.2 inch
- Notes
-

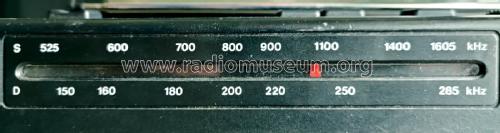

Wavebands:
UKW: 65.5 - 74 MHz OIRT!
KW: 5.8 - 10.5 MHz
MW: 525 - 1605 kHz
LW: 150 - 285 kHz.

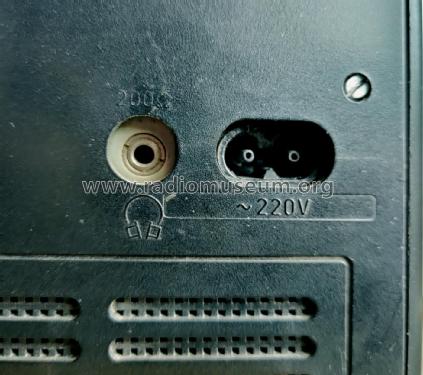

On/off button, plug for headphone, 200 ohm.Similar radio: Universum KRN-356.
- Net weight (2.2 lb = 1 kg)
- 1.3 kg / 2 lb 13.8 oz (2.863 lb)
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
