• Country
• Poland

• Manufacturer / Brand
• Unitra WZT, Warszawskie Zaklady Telewizyjne, Warszawa (Warschau).

• Year
• 1970 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 273176

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 15

• Valves / Tubes
• PCC88 PCF82 EF183 EF183 EF184 PCL84 PCL86 PCL85 ECH84 EAA91 PCF82 PL500 PY88 EY86 A61-140W

• Number of Transistors
• 2

• Semiconductors
• BY238 DOG58 DOG61 DK63 DOG62 DOG62 AF428 AF428

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

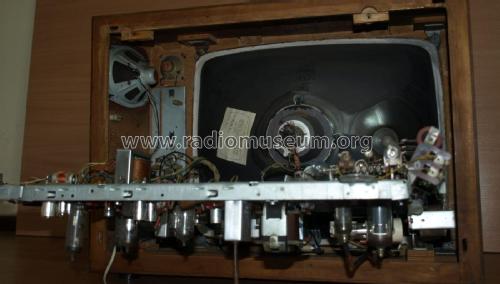

• Model: Beryl 101 - Unitra WZT, Warszawskie

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 985 x 500 x 430 mm / 38.8 x 19.7 x 16.9 inch

• Notes

• B/W TV receiver, VHF range (channels 1÷12), ready for UHF

• Literature/Schematics (1)
• Radioamator i Krótkofalowiec 4/71

• Author
• Model page created by Tomasz Szczesniak. See "Data change" for further contributors.
