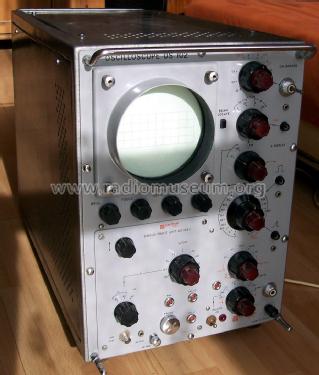

Oscilloscope OS102
Unitra ZRK, Zaklady Radiowe im. M. Kasprzaka
- Country
- Poland
- Manufacturer / Brand
- Unitra ZRK, Zaklady Radiowe im. M. Kasprzaka
- Year
- 1970 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 245542
-
- Brand: Unitra
- Number of Tubes
- 50
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 190-240 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Oscilloscope OS102 - Unitra ZRK, Zaklady Radiowe im
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 310 x 435 x 645 mm / 12.2 x 17.1 x 25.4 inch
- Notes
-
Professional oscilloscope with vertical bandwidth up to 30 MHz with interchangeable one- and two-channel modules.
Screen diameter 13cm with tube DH 13-79. Each tube type listed once only.
- Net weight (2.2 lb = 1 kg)
- 27 kg / 59 lb 7.5 oz (59.471 lb)
- Author
- Model page created by Piotr Jachymczyk. See "Data change" for further contributors.
