- Country
- United States of America (USA)
- Manufacturer / Brand
- Universal Radio Manufacturing Corp.; Elmira, New York
- Year
- 1919
- Category
- Radio module pre 1926 (not a part, not a key)
- Radiomuseum.org ID
- 309015

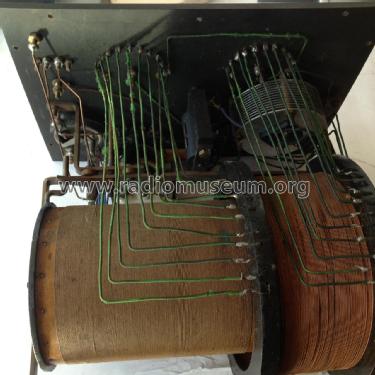

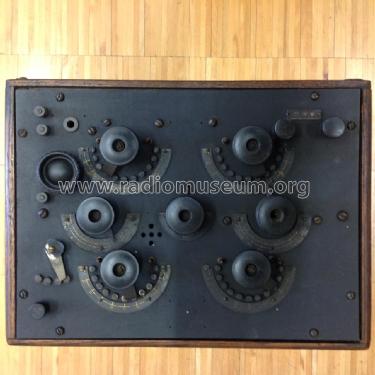

Collection privée (réf.: 764
Collection privée (réf.: 764)
Collection privée (réf.: 764)
Collection privée (réf.: 764)
Collection privée (réf.: 764)
- Number of Tubes
- 1
- Valves / Tubes
- VT-Class-I
- Main principle
- Tuner pre 1926 (not a wave trap)
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org
- Model: RLC5 - Universal Radio Manufacturing
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 310 x 230 x 285 mm / 12.2 x 9.1 x 11.2 inch
- Notes
-
This receiver was left over stock from pre-WWI production of the Mignon Wireless RLC5 when Mignon formed the Universal Radio Manufacturing Co.
It is very likely this model was user modified with the addition of the vacuum tube detector and not a factory modification.
- Net weight (2.2 lb = 1 kg)
- 6.2 kg / 13 lb 10.5 oz (13.656 lb)
- Author
- Model page created by Musée des Radios Museum. See "Data change" for further contributors.
- Other Models
-
Here you find 2 models, 2 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Universal Radio Manufacturing Corp.; Elmira, New York
Collections
The model RLC5 is part of the collections of the following members.
