SEC O3 (SEC 03) 12 Band Receiver NR-82F1 (Japan 508)

New Hope (Jitugyou) Co.; Osaka

Data
Forum
Pictures
Collections

  • Year
  • 1982 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 216187

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Line / Batteries (any type) / 220 / 12; 8 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: SEC O3 12 Band Receiver NR-82F1 - New Hope Jitugyou Co.; Osaka
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 320 x 490 x 185 mm / 12.6 x 19.3 x 7.3 inch
  • Notes

  • SEC O3 (SEC 03), 12 Band Receiver NR-82F1
    Multiband receiver covering:
    1,6-3,9
    3,6-10
    8,5-23
    21,5-31 MHz shortwaves;
    29-51
    65-88
    86-109
    107-138
    142-178 MHz VHF;
    420-470 MHz UHF (counter not active).

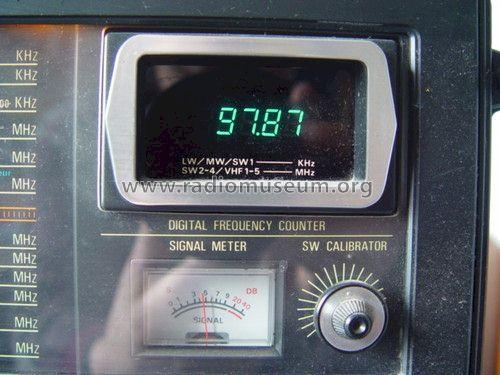

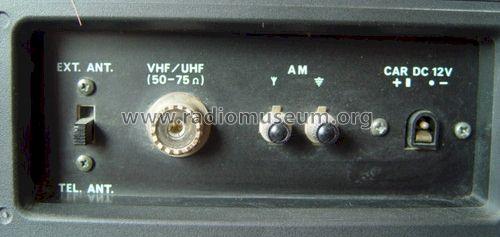

    Signal meter, DIN I/O terminal, headphone jack, BFO, bandwidth-switch, 3 telescopic antennas, frequency counter. Made in Japan.

    Also sold as:

    Made in Japan 508



  Globephone_GS-8008 DX_Instruction 1462 KB
  Globephone GS-8008DX Bedienungsanleitung 1820 KB
