2 Band Alarm Clock Radio Art. No. 543.185

Unknown to us - Worldwide

Data

Forum

Pictures

Collections

Country
Worldwide

Manufacturer / Brand
Unknown to us - Worldwide

Year
1995 ??

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
303944

Schematics

2 Band Alarm Clock Radio Art. No. 543.185; Unknown to us - (ID = 2291818) Radio — Unknown to us - 2 Band Alarm Clock Radio Art. No. 543.185 (1)

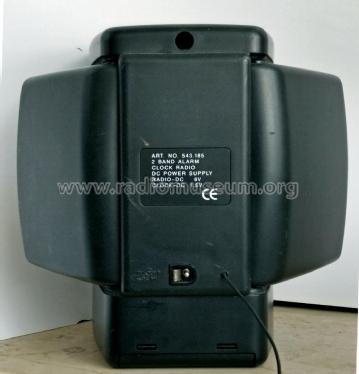

2 Band Alarm Clock Radio Art. No. 543.185; Unknown to us - (ID = 2291819) Radio — Unknown to us - 2 Band Alarm Clock Radio Art. No. 543.185 (1)

2 Band Alarm Clock Radio Art. No. 543.185; Unknown to us - (ID = 2291820) Radio — Unknown to us - 2 Band Alarm Clock Radio Art. No. 543.185 (1)

2 Band Alarm Clock Radio Art. No. 543.185; Unknown to us - (ID = 2291821) Radio — Unknown to us - 2 Band Alarm Clock Radio Art. No. 543.185 (1)

2 Band Alarm Clock Radio Art. No. 543.185; Unknown to us - (ID = 2291822) Radio — Unknown to us - 2 Band Alarm Clock Radio Art. No. 543.185 (1)

2 Band Alarm Clock Radio Art. No. 543.185; Unknown to us - (ID = 2291823) Radio — Unknown to us - 2 Band Alarm Clock Radio Art. No. 543.185 (1)

2 Band Alarm Clock Radio Art. No. 543.185; Unknown to us - (ID = 2291824) Radio — Unknown to us - 2 Band Alarm Clock Radio Art. No. 543.185 (1)

2 Band Alarm Clock Radio Art. No. 543.185; Unknown to us - (ID = 2291825) Radio — Unknown to us - 2 Band Alarm Clock Radio Art. No. 543.185 (1)

2 Band Alarm Clock Radio Art. No. 543.185; Unknown to us - (ID = 2291827) Radio — Unknown to us - 2 Band Alarm Clock Radio Art. No. 543.185 (1)

Technical Specifications

Number of Transistors
Semiconductors present.

Semiconductors

Main principle
Superheterodyne (common)

Wave bands
Broadcast (BC) and FM or UHF.

Power type and voltage
Batteries / addl. power jack / AA: 4 × 1,5 / 6 & for clock 1 x 1,5 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: 2 Band Alarm Clock Radio Art. No. 543.185 - Unknown to us - Worldwide

Shape
Tablemodel with Clock ((Alarm-) Clock Radio).

Dimensions (WHD)
150 x 150 x 120 mm / 5.9 x 5.9 x 4.7 inch

Author
Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.

Other Models
Here you find 828 models, 761 with images and 29 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Unknown to us - Worldwide

Collections | Museums | Literature

Collections

The model 2 Band Alarm Clock Radio is part of the collections of the following members.

Sándor Selyem-Tóth (H)
