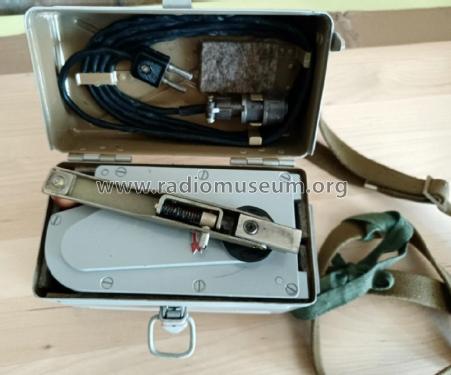

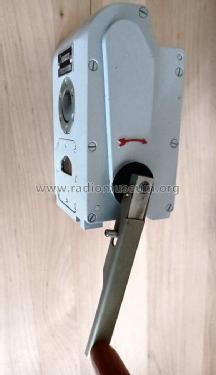

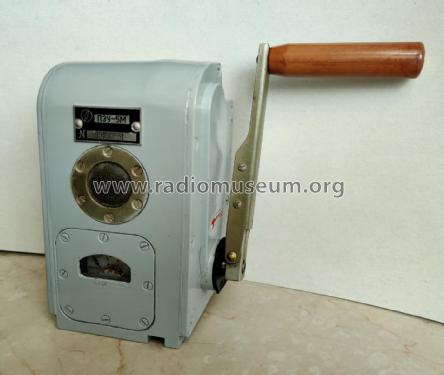

Портативное Зарядное Устройство ПЗУ-5М Portable Battery Charger PZU-5M

• Country
• Soviet Union

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: Soviet Union

• Year
• 1974 ?

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 338860

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Solar- and/or muscle driven, also addl. power jack possible

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Портативное Зарядное Устройство ПЗУ-5М Portable Battery Charger PZU-5M - Unknown - CUSTOM BUILT: Soviet

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 160 x 80 x 115 mm / 6.3 x 3.1 x 4.5 inch

• Notes

• Max: 10 V / 1 A.

• Net weight (2.2 lb = 1 kg)
• 2.950 kg / 6 lb 8 oz (6.498 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
