Amateur Fernsehgerät - Телевизор LTK-9 - ЛTК-9

• Country
• Soviet Union

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: Soviet Union

• Year
• 1953

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 267805

• Picture

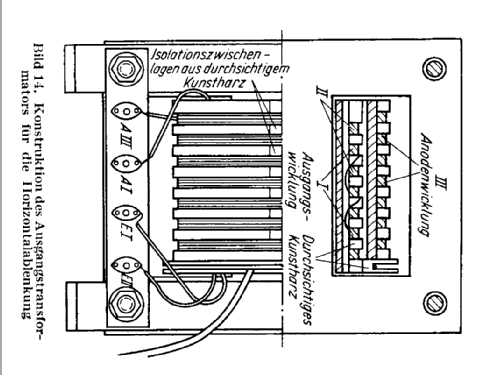

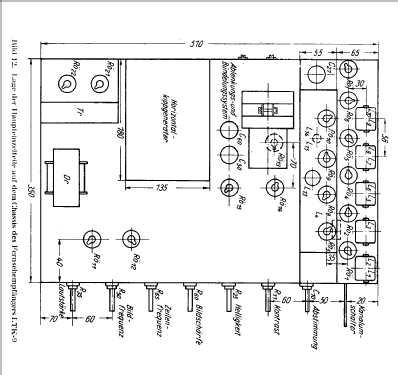

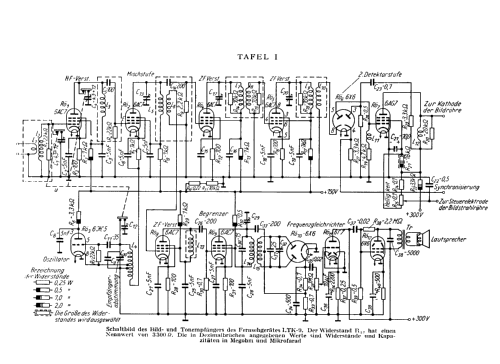

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 22

• Valves / Tubes
• 6Ж4 6Ж4 6Ж5П 6Ж4 6Ж4 6Х6 6AG7_DDR 6Ж4 6Ж4 6Х6 6Г7 6Ф6 6Ж4 6Н7 6Ф6 6Н7 Г-807 5Ц4 1Ц1С 5Ц4 5Ц4 ЛК-715А or 23ЛК1Б

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: Amateur Fernsehgerät - Телевизор LTK-9 - ЛTК-9 - Unknown - CUSTOM BUILT: Soviet

• Shape
• Chassis only or for «building in»

• Notes

• Autor/Entwickler: A.J. Kornienko.

  Amateur-Fernsehgerät mit Rundbildröhre für den VHF Empfang nach OIRT-Norm.
  Parallelton-Verfahren. Vorgesehen für Empfang jeweils eines Kanals

  1. 48,5 - 56,5 MHz, Bildträger 49,75 MHz
  2. 58 - 66 MHz, Bildträger 59,25 MHz
  3. 76 - 84 MHz, Bildträger 77,25 MHz

  Bildgrösse 140 x 190 mm für Bildröhre 23ЛК1Б.

  Leistungsaufnahme 300 Watt.

• Mentioned in
• Deutsche Ausführung: Fachbuch GmbH Leipzig 1953
