• Country
• Germany

• Manufacturer / Brand
• TEC Dieter Beer; Wiesbaden

• Year
• 1980 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 178992

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 17

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 465/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 8.8 cm = 3.5 inch

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

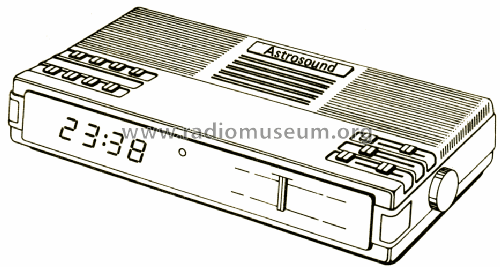

• Model: Astrosound Stereotimer 2 - TEC Dieter Beer; Wiesbaden

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 315 x 70 x 170 mm / 12.4 x 2.8 x 6.7 inch

• Notes
• 22 Dioden, 4 ICs.
  Automatische Helligkeitsregelung für die LED-Zeitanzeige.
  Batterie für Netzausfallüberbrückung der Uhr: 2 x 9 V.

• Net weight (2.2 lb = 1 kg)
• 1.6 kg / 3 lb 8.4 oz (3.524 lb)

• Source of data
• - - Manufacturers Literature

• Mentioned in
• -- Schematic

• Author
• Model page created by a member from D. See "Data change" for further contributors.
