Radio Bassi 548U
Unknown - CUSTOM BUILT; Belgium
- Country
- Belgium
- Manufacturer / Brand
- Unknown - CUSTOM BUILT; Belgium
- Year
- 1940 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 276946
Frontansicht, eigenes Gerät
Verdrahtungsseite, eigenes Gerät

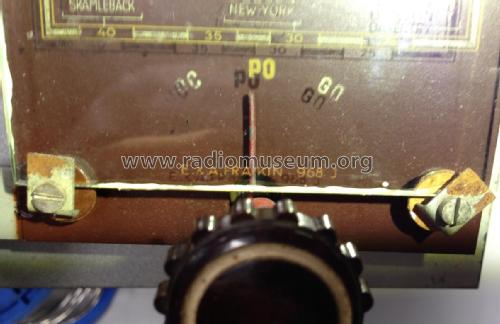

Detail Skala, eigenes Gerät
Skala gesamt, eigenes Gerät
Typenschild, eigenes Grät
Chassis von oben, eigenes Gerät
Chassis Rückseite, eigenes Gerät
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 472 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 110-240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 11 cm = 4.3 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Radio Bassi 548U - Unknown - CUSTOM BUILT;
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 330 x 220 x 200 mm / 13 x 8.7 x 7.9 inch
- Notes
-
Gerät ist vermutlich aus kleiner franz. oder belgischer Produktion.
Auf der Skala steht: E&A Fraikin 968J. Das Typenschild auf der Rückwand ist teilweise handgeschrieben.
- Net weight (2.2 lb = 1 kg)
- 5.5 kg / 12 lb 1.8 oz (12.115 lb)
- Author
- Model page created by Rolf Beckers. See "Data change" for further contributors.
