Beaver 501
Unknown - CUSTOM BUILT: Japan
- Country
- Japan
- Manufacturer / Brand
- Unknown - CUSTOM BUILT: Japan
- Year
- 1960
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 120137

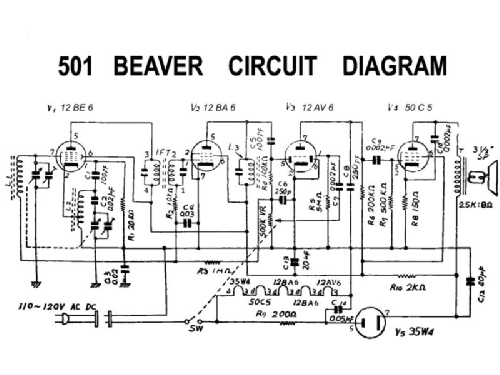

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line (AC, UC or DC not known) / 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Beaver 501 - Unknown - CUSTOM BUILT: Japan
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 6.75 x 4.25 x 4.5 inch / 171 x 108 x 114 mm
- Notes
-
Made in Japan and imported in 1960 by the Mercantile Company, Vancouver, BC., Canada.
- Net weight (2.2 lb = 1 kg)
- 2 lb 0 oz (2 lb) / 0.908 kg
- Source of data
- -- Collector info (Sammler)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
