Calibrator Crystal N°7 WY 0270
Unknown to us - Worldwide
- Country
- Worldwide
- Manufacturer / Brand
- Unknown to us - Worldwide
- Year
- 1930 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 261461
- Number of Tubes
- 6
- Wave bands
- - without
- Power type and voltage
- Storage and/or dry batteries / 2 & 120 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org

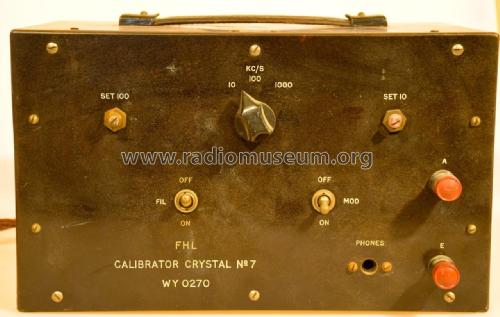

- Model: Calibrator Crystal N°7 WY 0270 - Unknown to us - Worldwide
- Shape
- Tablemodel, low profile (big size).
- Notes
-

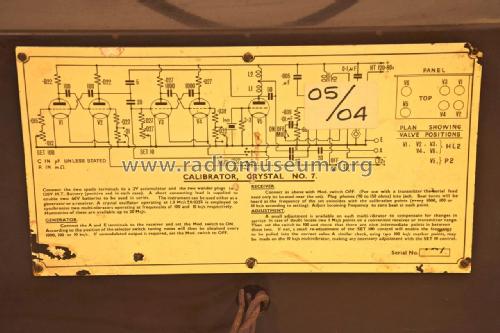

Use: see photo of backpanel with explanation.
Output: modulated or not by user choice.
Base frequencies: 10, 100 and 1000 kHz derived from 1MHz crystal.
Available output frequencies: 1 Mhz and all harmonics up to about 20 MHz + optionally a marker every 100 kHz or a marker every 100 and 10 kHz depending on the position of the selection switch.
- Author
- Model page created by Etienne Flemal. See "Data change" for further contributors.
