Colton Six Transistor (Japan JT-602)
Orion Electric Co., Ltd.; Echizen-shi (Fukui)
- Country
- Japan
- Manufacturer / Brand
- Orion Electric Co., Ltd.; Echizen-shi (Fukui)
- Year
- 1966 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 229693

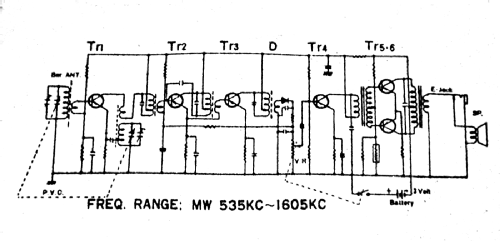

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 2 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Colton Six Transistor - Orion Electric Co., Ltd.;
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 65 x 100 x 37 mm / 2.6 x 3.9 x 1.5 inch
- Notes
-
See also Belson Six Transistor
Made in Japan 602
- Author
- Model page created by Jörg Holtzapfel. See "Data change" for further contributors.
