• Country
• United States of America (USA)

• Manufacturer / Brand
• Commodore Import Corp.; Brooklyn, NY

• Year
• 1960 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 185577

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch

• Power out
• 0.15 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

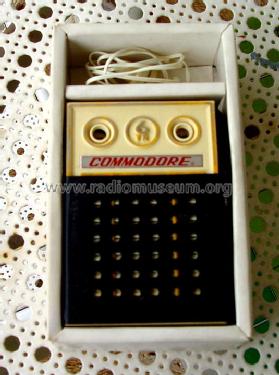

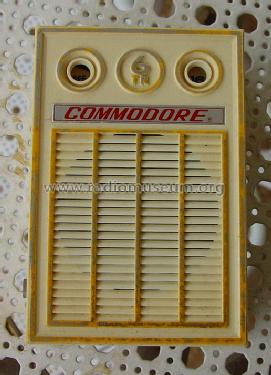

• Model: 6 TR Transistor TW-66 - Commodore Import Corp.;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 66 x 100 x 30 mm / 2.6 x 3.9 x 1.2 inch

• Notes

• Commodore 6 Transistor radio.

  This model appears identical to the Commodore Superlative 66 except for the country of manufacture.

  Made in Japan (Okinawa) 205



• Net weight (2.2 lb = 1 kg)
• 0.180 kg / 0 lb 6.3 oz (0.396 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Alberto Sanna-Alonso. See "Data change" for further contributors.
