Craftmaster Four Band 14 Transistor Solid State AFC 1670 (Japan 803)

Unknown - CUSTOM BUILT: Japan

Data
Forum
Pictures
Collections

  • Year
  • 1970 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 293970

 Technical Specifications

  • Number of Transistors
  • 14
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, 2 Short Wave plus FM or UHF.
  • Power type and voltage
  • Line / Batteries (any type) / 117 or C: 4 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Craftmaster Four Band 14 Transistor Solid State AFC 1670 - Unknown - CUSTOM BUILT: Japan
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 11 x 8.5 x 3.25 inch / 279 x 216 x 83 mm
  • Notes

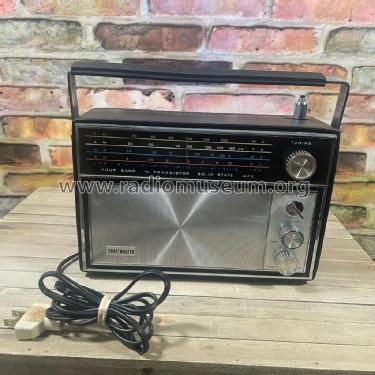

  • Craftmaster Portable Four Band 14 Transistor Solid State AFC Radio Model 1670.
    4 Band - FM, AM, MB, SW
    Tone Control (Low-High)
    Telescopic antenna
    Carrying Handle

    Made in Japan 803


  • Net weight (2.2 lb = 1 kg)
  • 4.5 lb (4 lb 8 oz) / 2.043 kg
  • Mentioned in
  • -- Collector info (Sammler)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
