• Country
• Singapore

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: Singapore (SGP)

• Year
• 1975 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 164425

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch

• Power out
• 0.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

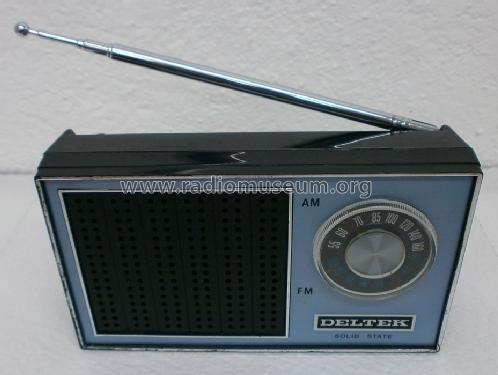

• Model: Deltek - Unknown - CUSTOM BUILT:

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 145 x 83 x 33 mm / 5.7 x 3.3 x 1.3 inch

• Notes
• Kleines Reiseradio mit Lederschutztasche, Kopfhöreranschluß über Klinkenbuchse 3,5 mm, Teleskopantenne 55 cm, Ferritantenne 10 cm

• Net weight (2.2 lb = 1 kg)
• 0.370 kg / 0 lb 13 oz (0.815 lb)

• Author
• Model page created by Museum Roggenhofer. See "Data change" for further contributors.
