• Country
• Argentina

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: Argentina

• Year
• 1940 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 354079

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6K8 6K7 6Q7 6F6 80

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Desconocido 24 - Unknown - CUSTOM BUILT:

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 400 x 260 x 260 mm / 15.7 x 10.2 x 10.2 inch

• Notes

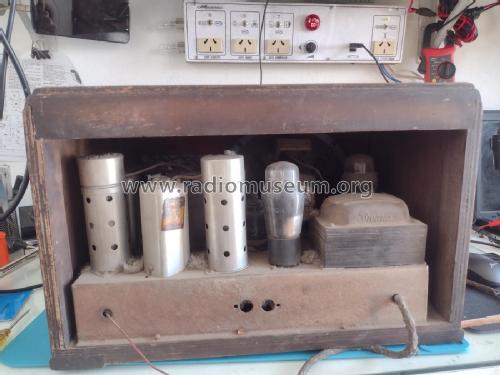

• Chasis de fabricante desconocido, instalado en una caja del fabricante Jorcin Radio Mueble, Buenos Aires.

• Net weight (2.2 lb = 1 kg)
• 7.985 kg / 17 lb 9.4 oz (17.588 lb)

• Author
• Model page created by Marcelo Ilardi. See "Data change" for further contributors.
