• Country
• United States of America (USA)

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: USA

• Year
• 1923 ??

• Category
• Detector-Radio (Crystal or diode, without tubes/transistors)

• Radiomuseum.org ID
• 303866

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Crystal or Solid State Detector

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• No Power needed

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org

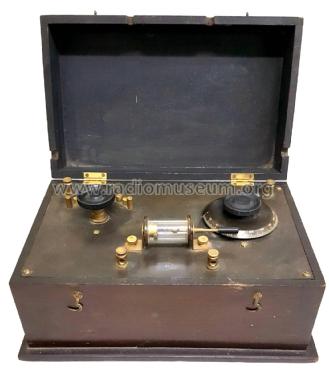

• Model: Detector Radio - Unknown - CUSTOM BUILT: USA

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 272 x 168 x 168 mm / 10.7 x 6.6 x 6.6 inch

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
