Durando Super Deluxe Model-654

Unknown - CUSTOM BUILT: Japan

  • Year
  • 1965 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 159317

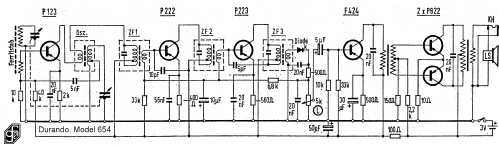

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 6
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 2 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 0.1 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Durando Super Deluxe Model-654 - Unknown - CUSTOM BUILT: Japan
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 108 x 67 x 34 mm / 4.3 x 2.6 x 1.3 inch
  • Price in first year of sale
  • 290.00 ATS
  • Author
  • Model page created by Gerhard Heigl. See "Data change" for further contributors.
