Частотомер Злектроппо Счетный - Elektron. Zählfrequenzmesser Č3-54 - Ч3-54

• Country
• Soviet Union

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: Soviet Union

• Year
• 1978 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 158155

• Picture

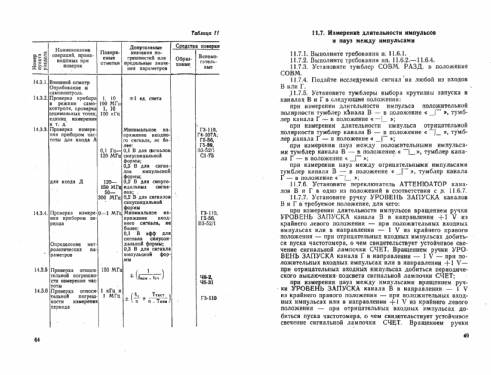

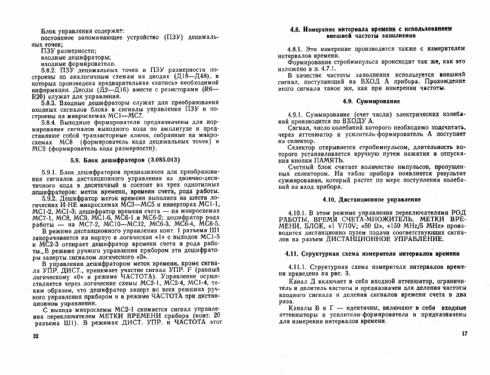

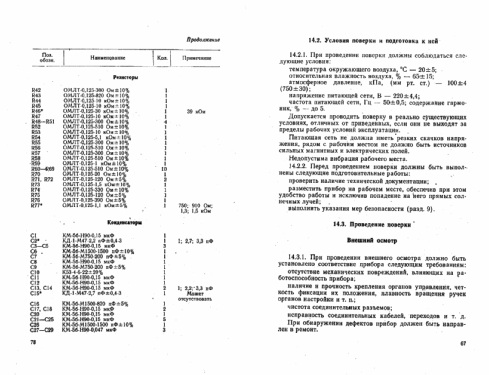

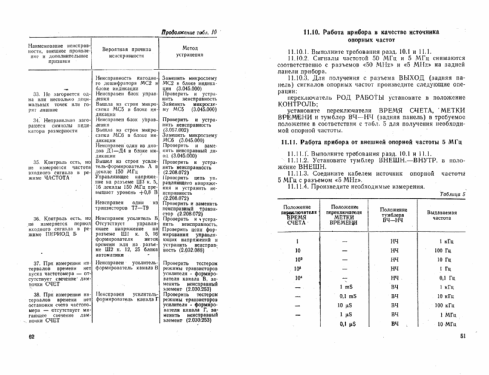

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 115; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Частотомер Злектроппо Счетный - Elektron. Zählfrequenzmesser Č3-54 - Ч3-54 - Unknown - CUSTOM BUILT: Soviet

• Shape
• Rack

• Dimensions (WHD)
• 490 x 120 x 480 mm / 19.3 x 4.7 x 18.9 inch

• Notes

• Mit Zeitintervallmesser-Einschub.
  Messbereich: 0,1 Hz...300 MHz bei 0,1...100 Veff.

  ---

  Price in Hungary (1983) 240'000.00 Forint

• Net weight (2.2 lb = 1 kg)
• 16 kg / 35 lb 3.9 oz (35.242 lb)

• Price in first year of sale
• 40,000.00 Mark

• Literature/Schematics (1)
• Műszer és Irodagép Katalógus,1983

• Author
• Model page created by Wolfgang Leifer. See "Data change" for further contributors.
