Empress High Sensitivity 8 Transistor 8TP-902
Unknown - CUSTOM BUILT: Japan
- Country
- Japan
- Manufacturer / Brand
- Unknown - CUSTOM BUILT: Japan
- Year
- 1965 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 331763
- Number of Transistors
- 8
- Semiconductors
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / C: 4 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Empress High Sensitivity 8 Transistor 8TP-902 - Unknown - CUSTOM BUILT: Japan
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 220 x 133 x 55 mm / 8.7 x 5.2 x 2.2 inch
- Notes
-

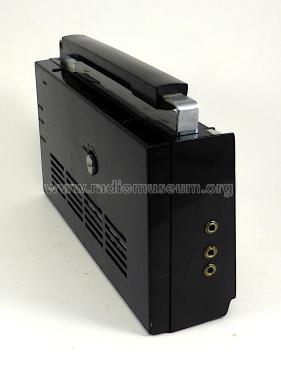

Plastic battery tube. Two earphone jacks. Jack for optional external antenna.Top handle slides up and down.
Distributed by "Itoman & Co., Ltd. Tokyo, Japan."
Similar to other models listed under Browni.
- Author
- Model page created by Ray Albright. See "Data change" for further contributors.
- Other Models
-
Here you find 1140 models, 1002 with images and 96 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Unknown - CUSTOM BUILT: Japan
Collections
The model Empress High Sensitivity 8 Transistor is part of the collections of the following members.
