2926
Elnora; Gouda
- Country
- Netherlands
- Manufacturer / Brand
- Elnora; Gouda
- Year
- 1950 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 187111
Prospect
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 467,5 kHz; 2 AF stage(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- Presumably Dynamic Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

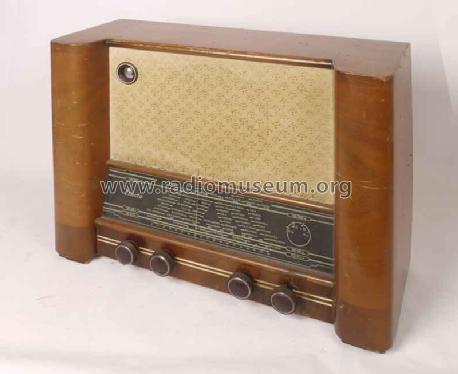

- Model: 2926 - Elnora; Gouda
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 500 x 360 x 210 mm / 19.7 x 14.2 x 8.3 inch
- Notes

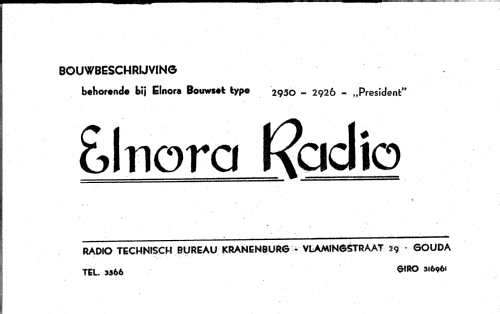

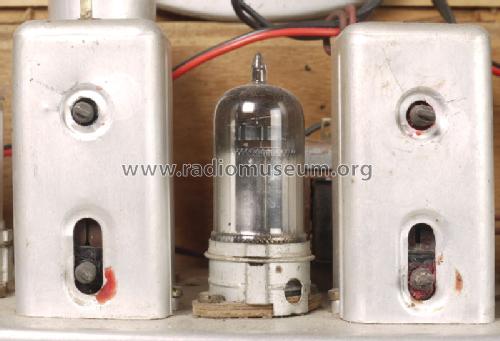

- This radio was offered as a kit by the Dutch radioseller Kranenburg in Gouda. The three wave coilblock is an Amroh type 736 with tuning capacitor and two IF-transformers, nr.51 and 52 of the same brand. The receiver looks like a model offered by the Dutch Maxwell BV Handelmaatschappij, Panningen (NL) with the name Fidelio.
- Price in first year of sale
- 168.00 HFL
- Source of data
- - - Data from my own collection
- Author
- Model page created by Jan Poortman. See "Data change" for further contributors.
