Eurotec Baby-Monitor (Babyphone)

Unknown Europe

Data
Forum
Pictures
Collections

  • Year
  • 1996 ??
  • Category
  • Miscellaneous (Other, Various) - see notes
  • Radiomuseum.org ID
  • 356557
    • alternative name: Unbekannt Europa

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Batteries / addl. power jack / PP3: 1 x 9 / DC 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.9 cm = 1.9 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Eurotec Baby-Monitor - Unknown Europe
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 74 x 141 x 44 mm / 2.9 x 5.6 x 1.7 inch
  • Notes

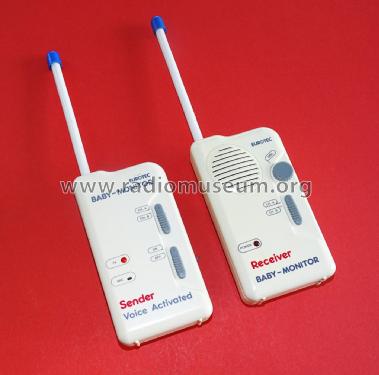

  • The Sender and Receiver of this Eurotec Baby Monitor have 2 RF channels, operating in the 27 MHz band. The Sender unit is voice-activated.

    Channel A: 27.835 MHz
    Channel B:  27.866 MHz

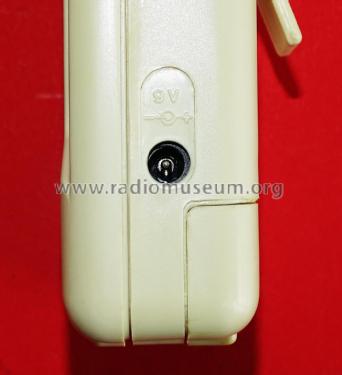

    A LED on the Sender indicates when the unit is transmitting, and the receiver has a volume control. Both units carry the Swiss Bakom (telecommunication authority) type approval No. 96.0021. M.P. They can be powered either by internal 9 V PP3 batteries, or by an external 9 V power supply connected via a coaxial socket. (Inner pole negative)

  • Net weight (2.2 lb = 1 kg)
  • 0.225 kg / 0 lb 7.9 oz (0.496 lb)
  • Author
  • Model page created by Bruce Taylor. See "Data change" for further contributors.
