• Country
• Europe

• Manufacturer / Brand
• Unknown Europe

• Year
• 1924

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 244911

• • alternative name: Unbekannt Europa

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Crystal or Solid State Detector

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Material
• Special material, described in the notes.

• from Radiomuseum.org
• Model: FELIX the Cat; Felix der Kater; Crystal set, Detektor [all models] - Unknown Europe

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• Notes

• This Character "Felix the Cat" debuted in a short film "feline follies" in 1900. It was soon syndicated to hundreds of newspapers around the world and became an international celebrity.

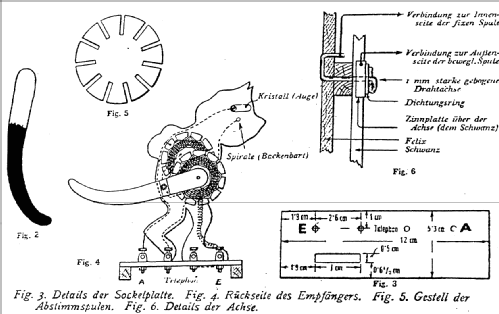

  In 1924 it was used for a novelty crystal set (S.J.E.,London), also self construction guides were issued e.g. by "Amateur Wireless" or the "Radiowelt".

  Tuning took place by moving the cat's tail, which moved  one coil of a variometer made from two loosely coupled basket coils, where one was fixed and the other could be swung. Another type used a tail-operated slide coil.

  The whole Novelty was made from plywood. Several designes are known (UK, Germany/Austria)

  To avoid scattering all over RMorg the different types are concentrated here under their common name FELIX, the cartoon character.

• Mentioned in
• Tickling the Crystal; Sanders (vol.2, p.46 ff.)

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
