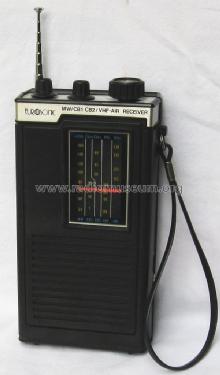

Eurosonic MW/CB1-CB2/VHF-Air Receiver AJ-2818
Unknown - CUSTOM BUILT: Hong Kong (HK)
- Country
- Hong Kong
- Manufacturer / Brand
- Unknown - CUSTOM BUILT: Hong Kong (HK)
- Year
- 1975 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 312607
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Power type and voltage
- Dry Batteries / AA: 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Eurosonic MW/CB1-CB2/VHF-Air Receiver AJ-2818 - Unknown - CUSTOM BUILT: Hong
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 92 x 192 x 50 mm / 3.6 x 7.6 x 2 inch
- Notes
-
Multiband-Empfänger mit 70cm Teleskopantenne, Abstimmung, Lautstärke/Ein/Aus, Tonblende oben, Bandwahl-Schiebeschalter rückseitig, 3,5mm Ohrhöreranschluss und Kunststoff-Trageschlaufe rechts.
Empfangsbereiche:
MW: 530 - 1620kHz,
CB: Kanal 1 - 40,
VHF/Air: 87,5 - 140MHz.siehe auch ähnliches Gerät Murphy Radio.
Made in Hong Kong.
- Net weight (2.2 lb = 1 kg)
- 0.432 kg / 0 lb 15.2 oz (0.952 lb)
- Author
- Model page created by Holger Struthoff. See "Data change" for further contributors.
