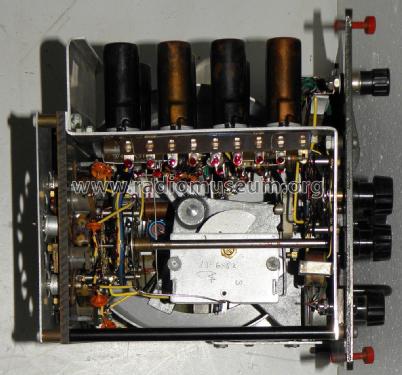

Frequenzmesser Frkvm.M
Unknown - CUSTOM BUILT: Denmark
- Country
- Denmark
- Manufacturer / Brand
- Unknown - CUSTOM BUILT: Denmark
- Year
- 1951 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 281369
- Number of Tubes
- 4
- Number of Transistors
- Semiconductors
- Zerhacker
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Line / Batteries (any type) / 12 / 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Frequenzmesser Frkvm.M - Unknown - CUSTOM BUILT:
- Shape
- Boatanchor (heavy military or commercial set >20 kg).
- Dimensions (WHD)
- 355 x 220 x 220 mm / 14 x 8.7 x 8.7 inch
- Notes
-
Frequenzmesser zur Überprüfung der Kalibrierung von Kurzwellen-Sendern und Empfängern.
Frequenzbereich 2,0 bis 9,0 MHz (7 Teilbereiche zu je 1,0 MHz).
Erzeugt Frequenzmarken in 100 kHz bzw. 1000 kHz Abstand.Im Gerät sind Fassungen für zwei Ersatzröhren und eine Ersatz-Zerhackerpatrone.
- Net weight (2.2 lb = 1 kg)
- 10 kg / 22 lb 0.4 oz (22.026 lb)
- Author
- Model page created by Siegfried Droese. See "Data change" for further contributors.
