Frontech 5" B/W TV AM/FM Radio FTV-7200
Unknown - CUSTOM BUILT: Taiwan (RC)
- Country
- Taiwan (Republic of China)
- Manufacturer / Brand
- Unknown - CUSTOM BUILT: Taiwan (RC)
- Year
- 1985 ??
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 356716
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Line / Storage batteries (perhaps also batteries) / 220 / 12-14 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

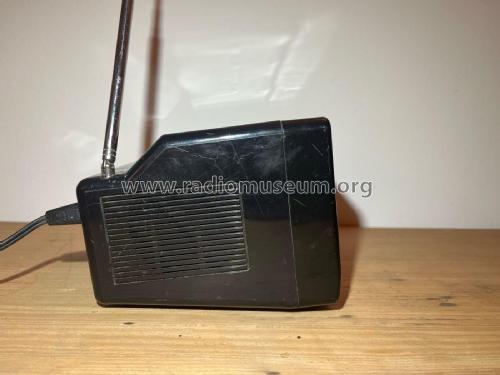

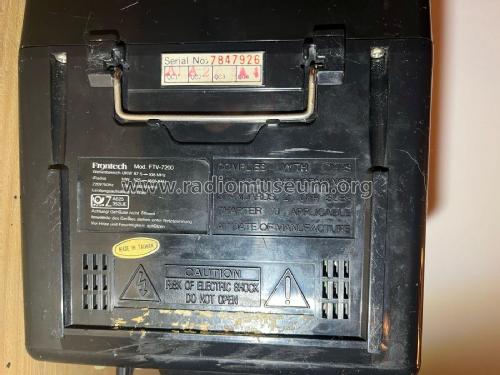

- Model: Frontech 5" B/W TV AM/FM Radio FTV-7200 - Unknown - CUSTOM BUILT: Taiwan
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 170 x 120 x 190 mm / 6.7 x 4.7 x 7.5 inch
- Notes
-
Frontech FTV-7200 ist eine Kombination eines 5" schwarz/weiss Fernsehempfängers mit UKW/MW Radio.
- Empfangsbereiche TV: VHF Band I, III sowie UHF Band IV/V
- Empfangsbereiche Radio: UKW 87,5 - 108 MHz, MW 525 - 1605 kHz
Netzspeisung 220 V Wechselspannung oder Speisung aus externem Akku mit 12-14 V Gleichspannung.
Siehe auch ähnliche Modelle, jedoch ohne Rundfunkteil
- Net weight (2.2 lb = 1 kg)
- 1.850 kg / 4 lb 1.2 oz (4.075 lb)
- Author
- Model page created by Michael Poitner. See "Data change" for further contributors.
