• Country
• Japan

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: Japan

• Year
• 1964 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 281075

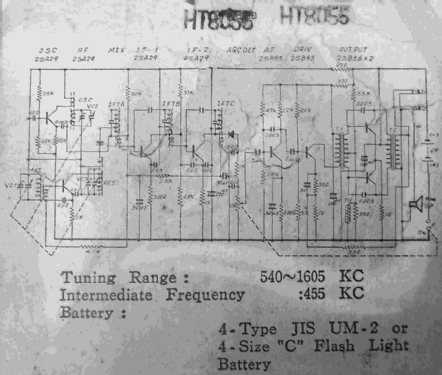

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2SA29 2SA29 2SA29 2SA29 2SB95 2SB95 2SB56 2SB56

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / UM-2: 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Gyonne Gavotte High Fidelity 8 Transistor Ch= HT8055 - Unknown - CUSTOM BUILT: Japan

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 220 x 125 x 50 mm / 8.7 x 4.9 x 2 inch

• Notes

• MW Reiseempfänger mit 2x 3,5 mm Ohrhöreranschlüssen (Mono), Metallchassis montiert in handgenähtem Ledergehäuse.

  Empfangsbereich:
  MW: 540 - 1605 kHz. Diodenmischung.

  Similiar to other models listed under Browni.

• Net weight (2.2 lb = 1 kg)
• 0.942 kg / 2 lb 1.2 oz (2.075 lb)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Holger Struthoff. See "Data change" for further contributors.
