• Country
• Japan

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: Japan

• Year
• 1959 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 174730

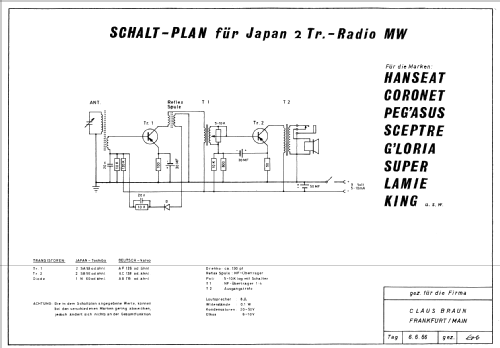

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 2

• Semiconductors

• Main principle
• TRF with regeneration; 1 AF stage(s); Reflex

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Hammer Super 2 Transistor Boy's Radio - Unknown - CUSTOM BUILT: Japan

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 65 x 108 x 32 mm / 2.6 x 4.3 x 1.3 inch

• Notes

• Hammer Super 2 Transistor Boy's Radio comes with an external antenna and earphone.

  Made in Japan.

• Net weight (2.2 lb = 1 kg)
• 0.158 kg / 0 lb 5.6 oz (0.348 lb)

• Author
• Model page created by Hans Gerhardt † 4.12.22. See "Data change" for further contributors.
