Highwave AM AFC FM 9 Transistors 9FM915
Unknown - CUSTOM BUILT: Japan
- Country
- Japan
- Manufacturer / Brand
- Unknown - CUSTOM BUILT: Japan
- Year
- 1964 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 306190
- Number of Transistors
- 9
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Dry Batteries / PP3: 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

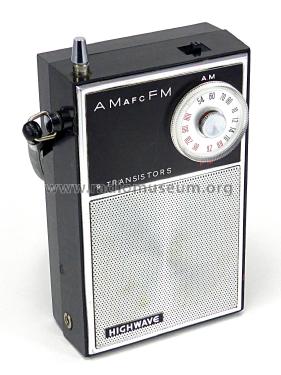

- Model: Highwave AM AFC FM 9 Transistors 9FM915 - Unknown - CUSTOM BUILT: Japan
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Notes
-
Telescoping antenna. AFC switch on top, above station dial. Identical circuitry to Highwave 9FM920 model except for one less capacitor. Some models of 9FM915 have slightly different lettering on the face plate and alternate transistor numbers.
FM: 88 - 108 MHz
AM: 535 - 1605 kHzMade in Japan.
- Literature/Schematics (1)
- Photofact TSM Transistor Radio Series SAMS (TSM-60 (October, 1965))
- Author
- Model page created by Ray Albright. See "Data change" for further contributors.
