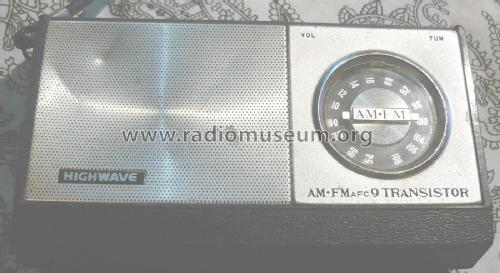

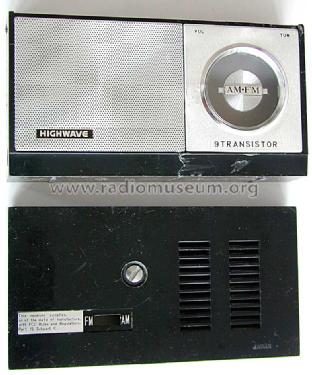

Highwave AM-FM 9 Transistor
Unknown - CUSTOM BUILT: Japan
- Country
- Japan
- Manufacturer / Brand
- Unknown - CUSTOM BUILT: Japan
- Year
- 1974
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 241154
Nur Gehäuse, ohne Inhalt.
- Number of Transistors
- 9
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Highwave AM-FM 9 Transistor - Unknown - CUSTOM BUILT: Japan
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 141 x 76 x 38 mm / 5.6 x 3 x 1.5 inch
- Notes
-
Range:
AM: 535-1605 kHz
FM: 88-108 MHzLedertasche mit Tragschlaufe als Zubehör.
Die Halbleiter 2SA342 liegen im Geraet in Version 2SA342A vor.
- Net weight (2.2 lb = 1 kg)
- 0.3 kg / 0 lb 10.6 oz (0.661 lb)
- Author
- Model page created by a member from D. See "Data change" for further contributors.
