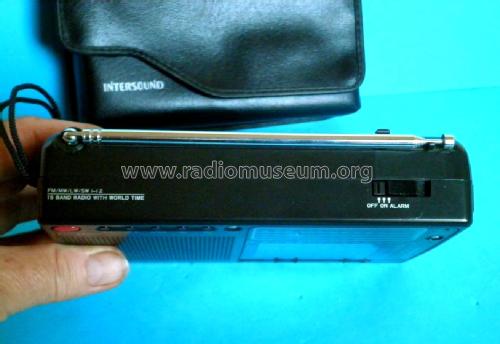

15 Band Radio With World Time WE-230
Intersound (brand)
- Country
- Switzerland
- Manufacturer / Brand
- Intersound (brand)
- Year
- 1994 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 164427
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 460 / 10700 kHz
- Wave bands
- Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
- Details
- Radio with other functions
- Power type and voltage
- Batteries / addl. power jack / AA: 3 x 1,5 / 4,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
- Power out
- 1 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 15 Band Radio With World Time WE-230 - Intersound brand
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 180 x 110 x 43 mm / 7.1 x 4.3 x 1.7 inch
- Notes
-
FM/MW/LW/SW 1-12 - 15 Band Radio (World Time), Spannungsversorgung für den Radioteil 4,5 Volt,- für den Timer 1,5 Volt, Kopfhöreranschluß über 3,5 mm Klinkenbuchse,
Similar radio Grundig YB 235.
- Net weight (2.2 lb = 1 kg)
- 0.5 kg / 1 lb 1.6 oz (1.101 lb)
- Price in first year of sale
- 490.00 Fr
- Source of data
- - - Manufacturers Literature
- Author
- Model page created by Museum Roggenhofer. See "Data change" for further contributors.
